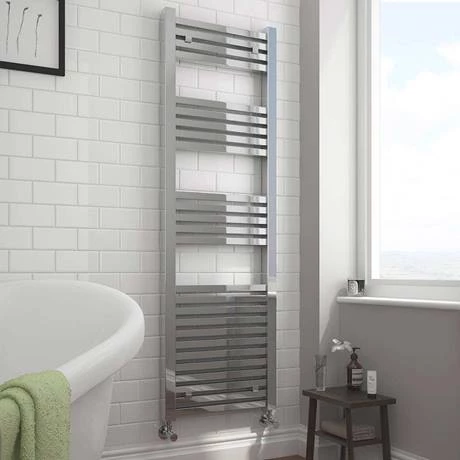

Cube 500 x 1420mm Heated Towel Rail (incl. Valves + Electric Heating Kit)

The Cube 500 x 1420mm heated towel rail is finished in chrome and features 30 horizontal square rails. Designed to be plumbed into the main central heating system and used as a radiator/towel rail. It also can be wired into the electric mains for summer towel warming.

**Supplied with Radiator Valves & Summer Electric Heating Kit.**

Towel Rail Details

•
  Depth: 30mm
• Height: 1420mm
• Width: 500mm
• Size, type and position of connections: 1/2″ FI BSP
• Dry Mass: 13.8kg
• Water Content: 6.4lt
• BTU T30: 1284
• BTU T50: 2495
• ∆ Watt T30 °C: 371
• ∆ Watt T50 °C: 727
• Colour/Finish: Polished Chrome
• Material: Durable Steel
• Quantity of Cross Rails: 30
• Tapping Centres (distance between pipe centres): 470mm
• Projection from wall: 90-105mm
• Profile: Straight
• Sparkling highly polished chrome finish
• Supplied complete with fixing kit, including plugs and vents
• Pressure tested to 10 bar / maximum working pressure 7 bar

Radiator Valves Details

• Height: 82mm
• Depth: 51mm
• Diameter: 31mm
• Material: Brass
• Finish: Chrome
• Angled Valves
• Comes as a Pair

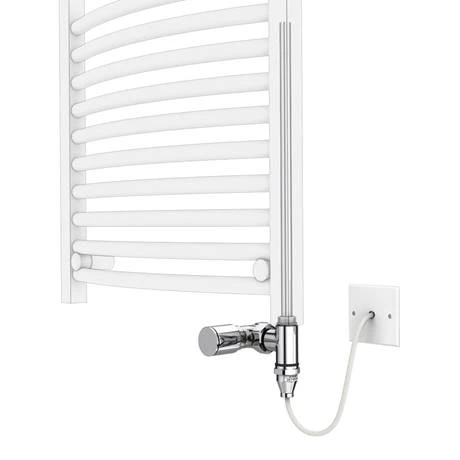

Heating Element Details

• Watts: 300
• Length: 350mm
• Colour/Finish: Chrome
• Suitable for use with 1200 / 1600 high x 22mm tube diameter towel rails
• Includes T-piece and plug
• On-off operation only

Dual Fuel Radiator: Connected to the central heating system, and also to the electric socket.

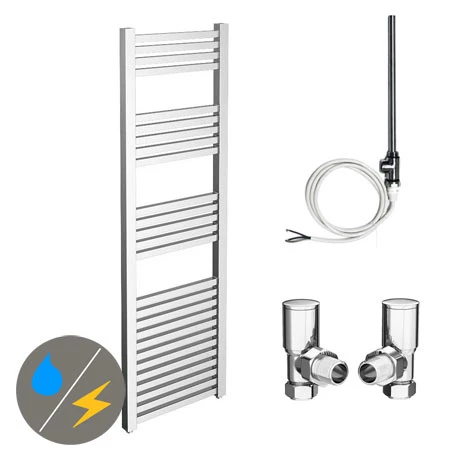

Comprises

(1) Cube Heated Towel Rail – Chrome
(1) Pair of Modern Angled Radiator Valves – Chrome
(1) 300W Electric Radiator Heating Element + Chrome T-Junction
