Diamond 500 x 1200mm Curved Heated Towel Rail (incl. Valves + Electric Heating Kit)

The Diamond 500 x 1200mm Curved profile towel rail is finished in chrome and features 20 horizontal 22mm diameter tubes. Designed to be plumbed into the main central heating system and used as a radiator/towel rail. It also can be wired into the electric mains for summer towel warming.

**Supplied with Radiator Valves & Summer Electric Heating Kit.**

Towel Rail Details

• Size: W500 x H1200mm
• BTU: 1488
• Watts: 436
• Quantity of Cross Rails: 20
• C/C Tappings (distance between pipe centres): 450mm
• Projection from Wall: 95–110mm

• Profile: Curved
• Standard rails 22mm tube diameter
• Sparkling highly polished chrome finish
• Supplied complete with fixing kit, including plugs and vents
• Manufactured under BS EN ISO 9001 quality standards
• BTU output given at Delta T 50C

• Guarantee: 5 Year (Please Note: According to EN-442 norm, the CE label must stay on the product. In case of removal, warranty will expire.)


Radiator Valves Details

• Height: 82mm
• Depth: 51mm
• Diameter: 31mm
• Material: Brass
• Finish: Chrome
• Angled Valves
• Comes as a Pair
• Guarantee: 5 Year

Heating Element Details

• Towel Warmer Heating Element, 300W 1/2″ BSP inc Chrome Tee.
• Length: 440mm
• Fits any 1/2″ BSP wet system towel warmer to give heating on demand when the central heating system is off.
• Ideal for summer use.

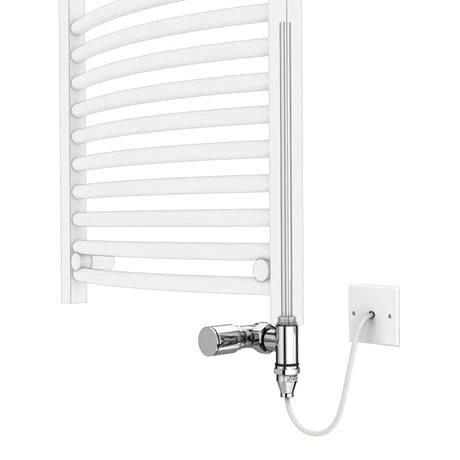

Dual Fuel Radiator: Connected to the central heating system, and also to the electric socket.

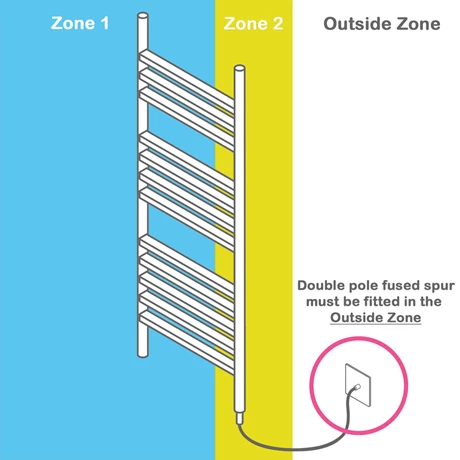

*Fused spur sold separately

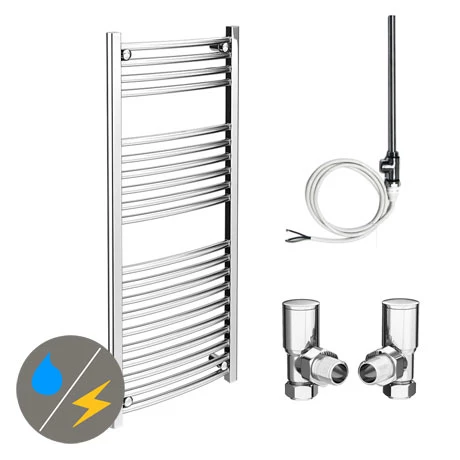

Comprises

(1) Diamond Heated Towel Rail – W500 x H1200mm – Chrome – Curved
(1) Pair of Modern Angled Radiator Valves – Chrome
(1) 300W Electric Radiator Heating Element + Chrome T-Junction
