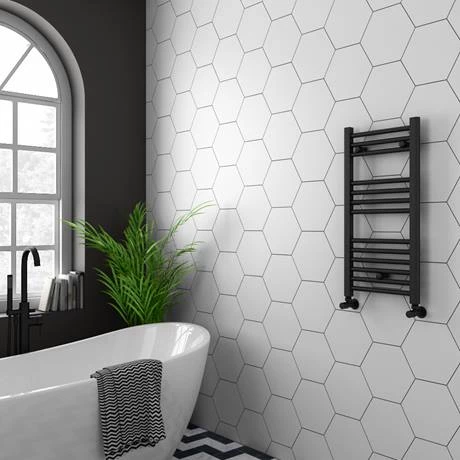

The Diamond 400 x 800mm straight profile towel rail is finished in attractive anthracite finish and features 13 horizontal 22mm diameter tubes. This 400mm heated towel rail is great for anybody looking for a small towel rail for a cloakroom or en-suite.
Designed to be plumbed into the main central heating system and used as a radiator/towel rail. It also can be wired into the electric mains for summer towel warming.
**Supplied with Radiator Valves & Summer Electric Heating Kit.**
Towel Rail Details
- Depth: 30mm
- Height: 800mm
- Width: 400mm
- Size, type and position of connections: 1/2″ FI BSP
- Dry Mass: 4.2kg
- Content: 2.9lt
- BTU T50: 958
- ∆ Watt T50: 281°C
- Max Operating Pressure: 8 Bar
- Quantity of Cross Rails: 13
- C/C Tappings (distance between pipe centres): 350mm
- Projection from Wall: 85/95mm
- Profile: Straight
- Standard rails 22mm tube diameter
- Anthracite powder coated finish
- Material: Durable Steel
- Supplied complete with fixing kit, including plugs and vents
- Manufactured under BS EN ISO 9001 quality standards
- Guarantee: 5 Year (Please Note: According to EN-442 norm, the CE label must stay on the product. In case of removal, warranty will expire.)
Radiator Valves Details
- Height: 82mm
- Depth: 51mm
- Diameter: 31mm
- Material: Brass
- Finish: Chrome
- Angled Valves
- Comes as a Pair
- Guarantee: 5 Year
Heating Element Details

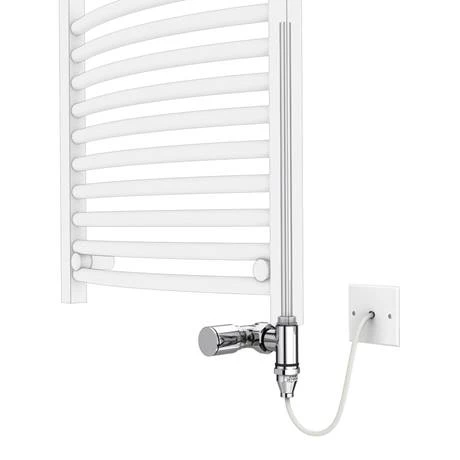

- Towel Warmer Heating Element, 300W 1/2″ BSP inc Chrome Tee.
- Fits any 1/2″ BSP wet system towel warmer to give heating on demand when the central heating system is off.
- Ideal for summer use.
Dual Fuel Radiator: Can be connected to the central heating system, and also to the electric socket.

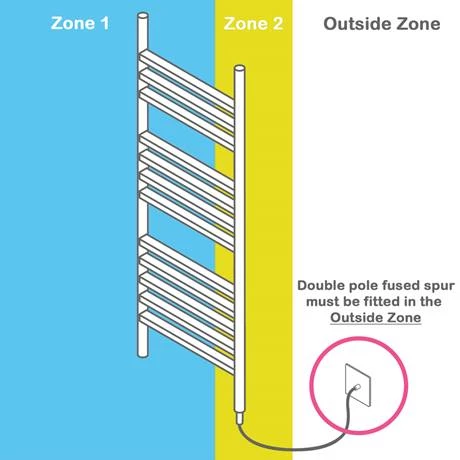

Please Note: Requires electrical connection by an approved electrician.
Additional images for illustrative purposes only
*Fused spur sold separately

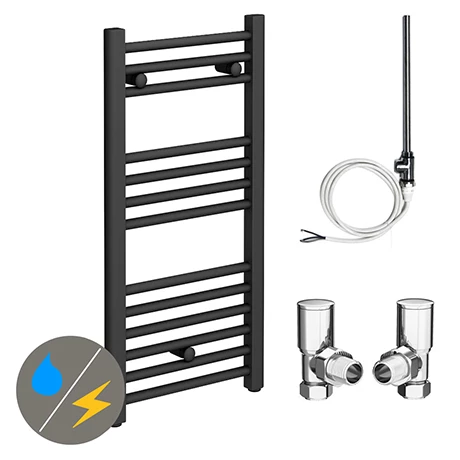

Comprises
(1) Diamond Heated Towel Rail – W400mm x H800mm – Anthracite – Straight
(1) Pair of Modern Angled Radiator Valves – Chrome
(1) 300W Electric Radiator Heating Element + Chrome T-Junction
